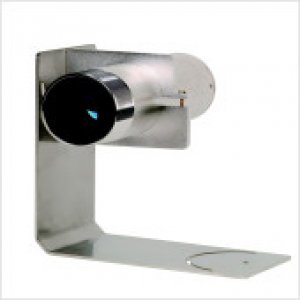

Two color Non-Contact Fixed Infrared Thermometer two color(InGaAs/InGaAs) non-contact infrared thermometer measures the infrared wavelength emitted from the target and converts it to standard current signal output (4~20mA) or RS-485 communication signal output. It can measure from 400 ℃ to maximum 1200℃ in the distance of 80:1 D:S (Distance to Spot). Emissivity is 0.10 ~ 0.99 adjustable. Two built-in laser pointers can aim at the target.
| |
| [ Applications ] |
 Aluminum, Chrome, Copper, Metal, Magnesium, Oxide-nickel, Platinum, Gold, Silver, Oxided-Titanium, Zinc, Tin, Steel, Oxided- Steel, Oxided-Brass |
| |
| [ Specification ] |
| |
| |
| Range |
400℃ ~1200℃ |
| Resolution |
1℃ |
| Emissivity |
0.1~0.99 |
| Response Time |
Within 0.1 sec |
| Accuracy |
2℃ or ±1℃ |
| Detection sensor |
2 Color-InGaAs/InGaAs |
| Field of View(D:S) |
80:1 |
| Wavelength Range |
1.0~1.5 µm |
| Input Power |
12V~24V |
| External Material |
SUS |
| Cable |
3M |
| |
|
| |
| [ Code Number 2IGA-100-□□□ ] |
| |
| |
| Model |
Description |
| Code A |
Temperature Range |
| 1 |
300℃~700℃ |
| 2 |
400℃ ~1200℃ |
| Z |
Other |
| Code B |
Output |
| M |
DC 0~20mA |
| N |
DC 4~20mA |
| V |
Voltage output DC1~5V |
| Z |
Other |
| Code C |
Cable Length |
| 1 |
3M |
| Z |
Other |
| |
|
| |
| [Optical Field of View ] |
| |
 |
